Electric Resistance Welded pipe (ERW)
High Frequency Induction weld pipe (HFI)
Electric Fusion Welded Pipe (EFW)
ERW Casing pipe—petroleum and nature air exploration
Standardsпјљ API SPEC 5CT, SY/T5989
Materials пјљH40 J55 K55
Structure and Mechanical Round pipe and Tubing
Standards: JIS3466гЂЃJIS3445; ASTM A513; GB/T 6728-2002
Steel Materials: carbon steel or low ally steel
Structure and Mechanical Square or Rectangular Pipe
Standards: GB/T3091 JIS G3452
Steel grade: Q215AгЂЃQ215BгЂЃQ235AB гЂЃQ295ABгЂЃQ345AB
SIZE:
ERW Pipe (Plain end)ASTM A53 Gr.A sch40
ERW STEEL PIPE
Size:
BS1387:1985 ERW Pipe
.
JISG3444:2004 STK 400/500 Structural Carbon Steel Pipes
End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,
Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)
Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Third party inspection:SGS, BV, Lloyds etc.
ERW steel pipe(Electric resistance welding steel pipe): Size: 355*6-30 mm Material: GR.A, GR.B, L245, X42, X46, X52, X56, etc. API/ ISO Certification.
erw pipe
1 ERW pipe
2 ERW pipe
См. также в других словарях:
Pipe (fluid conveyance) — For structural pipe, see Hollow structural section. For other uses, see Pipe (disambiguation). Steel pipes … Wikipedia
List of pipeline accidents — The following is a list of pipeline accidents: This is an incomplete list, which may never be able to satisfy particular standards for completeness. You can help by expanding it with reliably sourced entries. Contents 1 Bel … Wikipedia
OAO TMK — This is an article about the steel company TMK. For the Soviet space project TMK see TMK. OAO TMK (Russian: OAO Трубная Металлургическая Компания; English: Pipe Metallurgical Co., OJSC) (LSE: TMKS and RTS:TRMK) is one of the world s leading… … Wikipedia
Nuclear weapon design — The first nuclear weapons, though large, cumbersome and inefficient, provided the basic design building blocks of all future weapons. Here the Gadget device is prepared for the first nuclear test: Trinity. Nuclear weapon designs are physical,… … Wikipedia
Китайская Национальная Нефтегазовая корпорация — (CNPC) Китайская Национальная Нефтегазовая корпорация это одна из крупнейших нефтегазовых компаний мира Китайская Национальная Нефтегазовая корпорация занимается добычей нефти и газа, нефтехимическим производством, продажей нефтепродуктов,… … Энциклопедия инвестора
Demining — Colombian soldier minesweeping. Demining or mine clearance is the process of removing either land mines, or naval mines, from an area, while minesweeping describes the act of detecting of mines. There are two distinct types of mine detection and… … Wikipedia
Eleanor Rigby — The Beatles Veröffentlichung 5. August 1966 Genre(s) Popsong Autor(en) Lennon/McCartney Album Revolver … Deutsch Wikipedia
Mutter Courage und ihre Kinder — Daten des Dramas Titel: Mutter Courage und ihre Kinder Gattung: Episches Theater Originalsprache: Deutsch Autor: Bertolt Brecht … Deutsch Wikipedia
Walker Brothers — Die Walker Brothers waren eine US amerikanische Popband. Inhaltsverzeichnis 1 Mitglieder 2 Bandgeschichte 3 Coverversion 4 Diskografie … Deutsch Wikipedia
Орган (музыкальный инструмент) — У этого термина существуют и другие значения, см. Орган. Консоль электрооргана «Rodgers Trillium organ» (Roland Corporation) в одной из американских церквей … Википедия
Выбор типа выхлопа: Х-пайп vs Н-пайп + Y-пайп для моторов V8
Пока есть время, можно и нужно разобраться с типом выхлопа.
Оба типа выхлопа похожи между собой, к слову, Н-пайп есть частный случай Х-пайпа и тем не менее они совершенно разные.

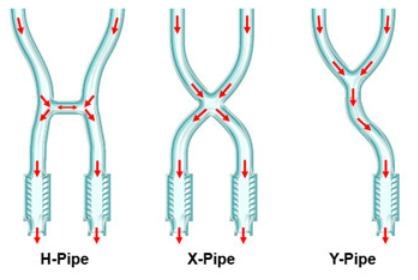

Диаграмма потоков выхлопных газов для всех всех типов «средних» труб выглядит так:
